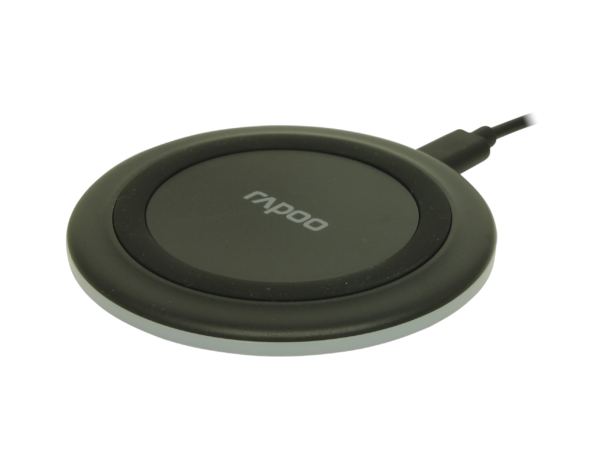

Wireless Charging Pad

XC110

19.99

  • Qi-certified wireless charging
  • Wide smartphone compatibility
  • Fast charging
  • Compact lightweight design
  • Phone case-friendly
  • Over-temperature and overcharge protection
SKU: 4545234234-3-1-1-1-1-1-1-1-1-1-1-1 Category:
User Manual

User Manual

Download the Quick Start Guide for this product

General FAQ

General FAQ

Check commonly asked questions for further information

Frequently Asked Questions: XC110

Please check our FAQs to find answers and solutions to common questions.

Which devices are compatible with the XC110?

The XC110 works with all Qi-compatible devices. Qi is the Wireless Power
Consortium (WPC) standard for wireless charging. For more details on whether your device is Qi-certified, please check with your phone or accessory manufacturer and/or your wireless carrier.

What is the charging output of XC110?

XC110 has a charging output of up to 15 W for Qi-certified devices. To use the wireless charging feature, you need a QuickCharge/ QC adapter 3.0 (not included in the XC110 packaging). For standard wireless charging (without using a QC adapter) XC110 has a charging output of up to 5 W.

Can I use my phone while using this charger?

Yes. However, you should not move the phone if you want it to continue charging. Additionally, using any apps and taking calls will slow the charging speed.

Can I charge my phone in landscape or portrait mode?

You can charge all Qi-compatible phones in either mode. Some wider phones with a case on may require charging in landscape mode only.

Will this work with a case on the phone?

The XC110 charges effectively through most phone cases up to 4 mm thick.

Can you charge an Apple Watch® on this charger?

No.

Can XC110 charge more than one phone at a time?

No, XC110 is designed to charge one Qi-enabled phone or accessory.

How many coils are there in this charger?

XC110 features a single coil.

Does the charger cause the phone/battery to heat up while charging?

All chargers create some heat as they charge. Wall chargers, docks, and even portable power banks lose some energy in the form of heat. Wireless chargers are no different; chargers that have been through extensive efficiency testing will minimize the amount of energy wasted through heat. Rapoo wireless chargers, including the XC110 pad, all feature over-heating protection to ensure efficient and safe charging.

Is XC110 an intelligent charger (stops charging once battery reaches 100%)?

Yes.

Does the XC110 have a cooling fan in it?

The XC110 charging pad has a heat-efficient, fan-free design that helps keep the charger cool.

Can this wireless charger be used in a car?

No, XC110 needs to be connected to a power outlet to operate.

Does the charging pad need to be plugged in to charge a device?

Yes.

How do I clean the XC110?

To clean the charger, use a standard electrical cleaning spray or a damp cloth.

Couldn’t find the answer in the FAQs?

Contact us and fill out the form with as much information as possible.
One of our support staff will help you as soon as possible.

Specifications

Power

USB Input 5V DC/2A, 9V DC/1.67A
Output 2.5W, 5W/7.5W/10W
Input Type USB A - USB C
Input Cable Length 1 m
USB Wall Charger Included No
Static Power < 0.2W

Other

Wireless Charging Standard Qi
Charging Induction Distance 3-8 mm
Charging Working Frequency 110KHz-205 KHz
Working Temperature 0 to 35° C
Protection Overcurrent, Overvoltage

Model Information

EAN 6940056195371
SKU 19537
Model Name XC110
Color Black

Dimensions

Height 12.2 mm
Diameter 94.4 mm
Weight 98 g

Compatibility

Apple iPhone 11 Pro Max, iPhone 11 Pro, iPhone 11, iPhone XS Max, iPhone XR, iPhone XS, iPhone X, iPhone 8 Plus, iPhone 8
Samsung Galaxy S20 Ultra (5G), Galaxy S20+, Galaxy S20, Galaxy Fold, Galaxy Note 10 Plus, Galaxy Note 10, Galaxy S10 Plus, Galaxy S10e, Galaxy S10, Galaxy Note 9, Galaxy S9 Plus, Galaxy S9, Galaxy Note 8, Galaxy S8 Plus, Galaxy S8 Active, Galaxy S8, Galaxy S7 Edge, Galaxy S7 Active, Galaxy S7, Galaxy S6 Edge Plus, Galaxy S6 Edge, Galaxy S6 Active, Galaxy S6
Google Pixel 4 XL, Pixel 4, Pixel 3 XL, Pixel 3, Nexus 6, Nexus 5, Nexus 4
LG V60 ThinQ, V50 ThinQ, V40 ThinQ, V30 Plus, V30, Vu 3, Vu 2, Spectrum 2, Optimus It L-05E, Optimus G Pro, Optimus F5, Lucid 3, Lucid 2, G7 ThinQ, G7, G6 Plus, G6, G3, G2
Huawei P40 Pro, Mate 30 Pro, Mate 30, P30 Pro, Mate RS Porsche Design, Mate 20 Pro
Xiaomi Mi 10 Pro, Mi 10, Mi 9, Mi MIX 3, Mi MIX 2S
HTC Windows Phone 8X, Droid DNA
Microsoft Lumia 950 XL Dual Sim, Lumia 950Lumia 950 Dual Sim, Lumia 950 XL,
Nokia 9 PureView, 8 Sirocco, Lumia 930, Lumia 929 (Icon), Lumia 928, Lumia 920, Lumia 830, Lumia 735, Lumia 1520
OnePlus 8 Pro
Motorola Motorola Edge+, Moto X Force, Moto Maxx, Droid Turbo 2, Droid Turbo, Droid Mini, Droid Maxx
BlackBerry Z30, PRIV, Passport
Sony Xperia XZ3, Xperia XZ2 Premium, Xperia XZ2, Xperia Z4V, Xperia Z3V
Panasonic Eluga X1 Pro, Eluga X1, Eluga X P-02E, Eluga V P-06D, Eluga P P-03E
Sharp SH-05D, Q-Pot SH-04D, Aquos Zeta SH-09D, Aquos Zeta SH-06E, Aquos Slider SH-02D, Aquos SH-13C, Aquos SH-07D, Aquos EX SH-04E
Fujitsu Arrows X F-10D, Arrows Kiss F-03E, Arrows Kiss F-03D, Arrows F-09D
HP Elite X3
Kyocera E6910, Urbano L03, Urbano L01, Torque KC-S701, Torque G02, Hydro Elite, DuraForce, Brigadier
Asus PadFone S
Caterpillar Cat S50C, Cat S50
CASIO G'z One Commando
DeWalt MIL810G, MD501
Energy Sistem Energy Phone Pro Qi
Philips X723
M.T.T. Master 4G
Meizu Zero
Mlais MX69W
mPhone mPhone 8
NEC Medias X N-04E, Medias PP N-01D
Noa F10 Pro
Oukitel U23
Razor Phone 2
RugGear RG730
Saygus V SQUARED
Techdy Bear Pro, Basic Bear
Vertu Signature Touch, Aster
YotaPhone Yotaphone 2
ZTE Axon 9 Pro, Telstra Tough Max
